  Customized Camera,DVR Security Solutions:

We have the professional team with vast experience in the surveillance domain. They will visit your site and suggest the best suitable and at the same time economical solution to complete your surveillance needs. We practically can provide hundreds of camera variations to suite your needs. Best suited DVR among Hundreds of DVR configurations available in the market. And at the same time we will educate you on this surveillance area so you will become the expert auditor of your own system to fetch the maximum output from this system.

  Pin Hole Camera


Camera with 1/3” CCD sensor. Uses Digital Signal Processor (DSP) chip for image processing. High contrast and Offers Better Sensitivity to Motion, Low smear, high anti-blooming and high S/N ration.

Auto Electronic Shutter (AES), Basic Auto Iris (A1), Auto Gain Control (AGC), Auto White Balance (AWB), Back Light Compensation (BLC) Built in anti-aliasing

Make - NEXUS

Model – NSS-P54-01


Image Sensor1/3 inch CCD
Effective PixelH512 X V 582 PAL
Resolution54 0 TV Lines
Signal System PAL/NTSC
Min. Illumination0.5 Lux @ F 2.0
S/N RatioMore than 48dB
Auto Electronic Shutte       1/50s – 1/110000s
Video Output1.0 VPP 75 (PAL)
Input Voltage12 V DC / 1 Amp

  Dome Night Vision Camera


Make - NEXUS

Model – NSS-NV54-01

Designed for areas that are prone to attack, the DSIR is enclosed in a indoor robust housing. Design of the lens and IR LED’s makes it a highly visible
Camera that serves as an effective deterrent in hostile environments.
This high-resolution ball dome comes complete with 24 inbuilt IR LEDs and CDS sensor, for effective night time surveillance

Image Sensor1/3 inch CCD
Resolution540 Lines
Signal System PAL/NTSC
Sensitivity Mono0 Lux IR LED On
Number of Infra Red    LEDs 24
IR Range20m
Lens Size 3.6mm
Voltage12V DC
Power Consumption 1 Amp – 1.5 Amp
Dimensions 94(Ø) x 80(H)mm
Weight Approx.460g

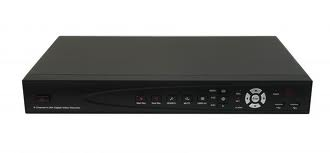

  DVR System


DVR (Digital Video Recording) is a new style of recording system that changes the signal of analog images in CCTV (Closed Circuit television) cameras into digital data.  DVR compresses and retrieves the recorded images through the international code of H.264 so that it can display clear and crisp images. This way DVR can be said as the heart of CCTV Recording System.

DVR Features And Specifications

Main features:
Embedded Linux OS
DaVinci DSP hardware compression

Make - NEXUS

Model –

Compression function:
H.264 video compression algorithm and each channel can be real time (PAL is 25FPS and NTSC is 30FPS).

Support multi-zone motion detection.
Support view tampering alarm function for spiteful camera block.
Support mask function to mask sensitive area.
Support video signal loss alarm function.
Support position configurable OSD&LOGO.
Support both constant bit rate and variable frame rate.
Support dual stream and the sub stream can support CIF/QCIF

Compression Resolution.

Storage function:
1 IDE interface for 1 HDD.
The HDD can be supported 2000GB maximum.
Support HDD S.M.A.R.T function. Support FAT32 file system.
Support many record mode: all time record, motion detect record, external alarm record, motion & alarm record,
motion | alarm record, manual record.
Support cycle and non-cycle record mode.
Support USB flash disk, USB hard disk and USB CD/DVD for backup.
Preview & Playback function:
Support one composite video output and one spot video output
Support one VGA output.
Support one channel playback.
Support playback fast, slow, pause, forward, backward, frame by frame, etc.
Use define preview layout.
Network function:
Support TCP, UTP, RTP, Multicast, DHCP, etc.
Support ADSL (PPPoE) dialup function.
Remote parameters setup.
Remote playback, download the recorded files in DVR.
Remote upgrade DVR firmware.
Remote control PTZ.
Support Internet Explore for network control
Remote get alarm information of DVR.
Support network voice talk.
Support PTZ local and remote control.
Support multi-lever user management.
Support local and remote search log function.
Automatically recovery from exceptions leads to high reliable.
Provide SDK and demo source code to shorten the application development time
SMPS Power Supply
Terminators and Connectors
